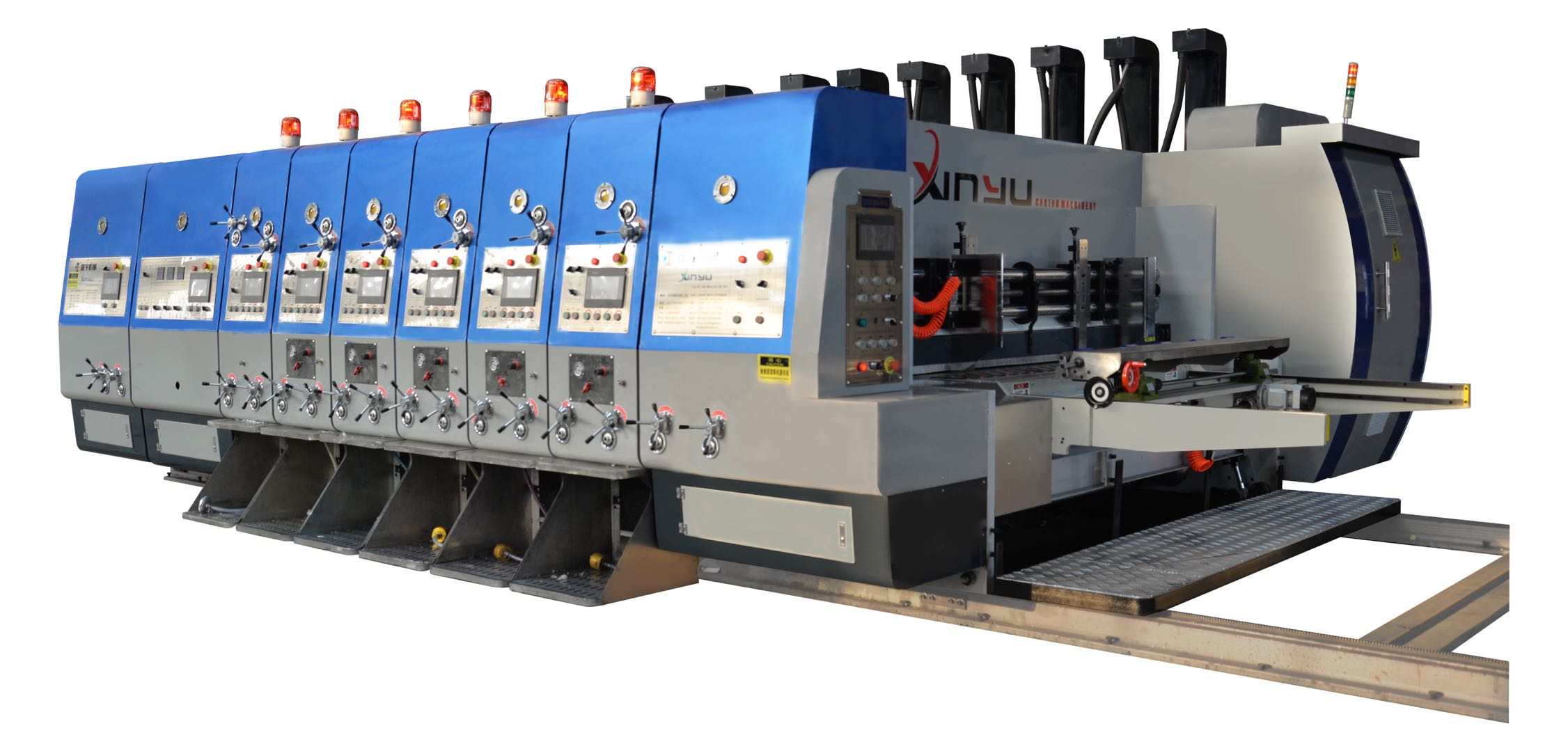

高清真空吸附印刷圆压圆模切机

高清真空吸附印刷圆压圆模切机


前缘送纸部LESS-PRESSURE LEAD EDGE FEEDER UNIT
1:双胶轴轻压系统设计,有效减轻对纸板的破坏。在满版印刷时表现更为突出
The double rubber feeding roller less pressure system design effectively reduces the damage to the cardboard. More beautiful in full-page printing.
2:送纸胶轴采用快速换轴设计,简单操作即可更换胶轴
The paper feed rubber roller adopts a quick shaft change design, and the rubber roller can be replaced by simple operation.
3:除尘系统,去除静电装置,毛刷除尘以及强力变频风机,并配合粘辊除尘,使得除尘效果佳
Dust removal system, Electrostatic removal device, brush dust removal and powerful inverter fan, combined with the dust removal of the sticky roller, the dust removal effect is optimal.
4:前缘部装有17寸工业摄像屏,方便机器前方操作工观察清废机堆码机运行状态,及时调整
It is equipped with a 17-inch industrial camera screen, which is convenient for the operator in front of the machine to observe the running status of the blanking machine stacking machine and adjust it in time.

印刷部 PRINTING UNIT ( vacuum transfer&CERAIMC ROLLER &DOCTOR BLADE TYPE)
1:整机采用先进的真空吸附传送方式,风量传送纸板,优点:纸板传递平稳,其印刷套色更为精准/ 风箱风门可根据纸板小中大规格,进行自动调整。保证了轻薄纸板,弯曲纸板以及低品质纸板的传送
The whole machine adopts advanced vacuum adsorption transmission system,Advantages: smooth transfer of paperboard, more accurate printing coloring.
2:The printing unit adopts a ceramic roller and doctor blade.The ceramic roller LPI can be selected from 300-800. The wear resistance of the ceramic anilox roller is more than ten times that of the conventional hard chrome-plated roller.
3:气囊式刀腔相对来说能延长陶瓷辊的使用寿命,加上采用塑料刮刀片,能很好的延缓陶瓷辊的磨损速度,开放式结构还不容易使陶瓷辊产生划痕。
The doctor blade can extend the service life of the ceramic roller relatively, and the plastic scraper blade can well delay the wear speed of the ceramic roller, and the open structure is not easy to damage ceramic roller.
4:整机所有操作均实现触摸屏全自动调节,间隙压力调节部分(主要为胶轴与印板滚筒之间的间隙调节)大大减少人工的使用;根据纸板的厚度印刷版的厚度,对印刷滚筒与风向之间的压力自动调节。
The whole operation of the whole machine realizes the automatic adjustment on the touch screen. The pressure adjustment part greatly reduces the manual use; according to the thickness of the printing plate, the printing cylinder and the wind direction The pressure between the two is automatically adjusted.
5:印刷套印精度可达±0.5MM
Printing color register precision is ±0.5MM.

烘干部DRYER UNIT
1:红外线干燥系统,烘干支架气动升降,便于印刷过程维护工作
Infrared drying system, drying bracket pneumatic lifting, easy to print process maintenance work.
2:红外线加热系统,温度上升迅速温度,每组加热功率为60KW
Infrared heating system, the temperature rises rapidly and the heating power of each group is 60KW.
3:温度恒温控制,可采用分段加热,节省电加热功率
Temperature constant temperature control, sectional heating can be used to save electric heating power.
4:温度报警,温度超温时自动报警
Temperature alarm, automatic alarm when temperature is over temperature.
5:冷风对流循环,提高烘干效果,降低烘干加热功率
Cold air convection circulation, improve drying effect, reduce drying heating power.
6:烘干系统自动感应,根据机器速度,自动调节温度,速度快时,烘干温度自动提升。
The drying system automatically senses the temperature according to the speed of the machine. When the speed is fast, the drying temperature is automatically increased.

上光部VARNISH UNIT
同印刷部 SAME AS THE PRINTING UNIT

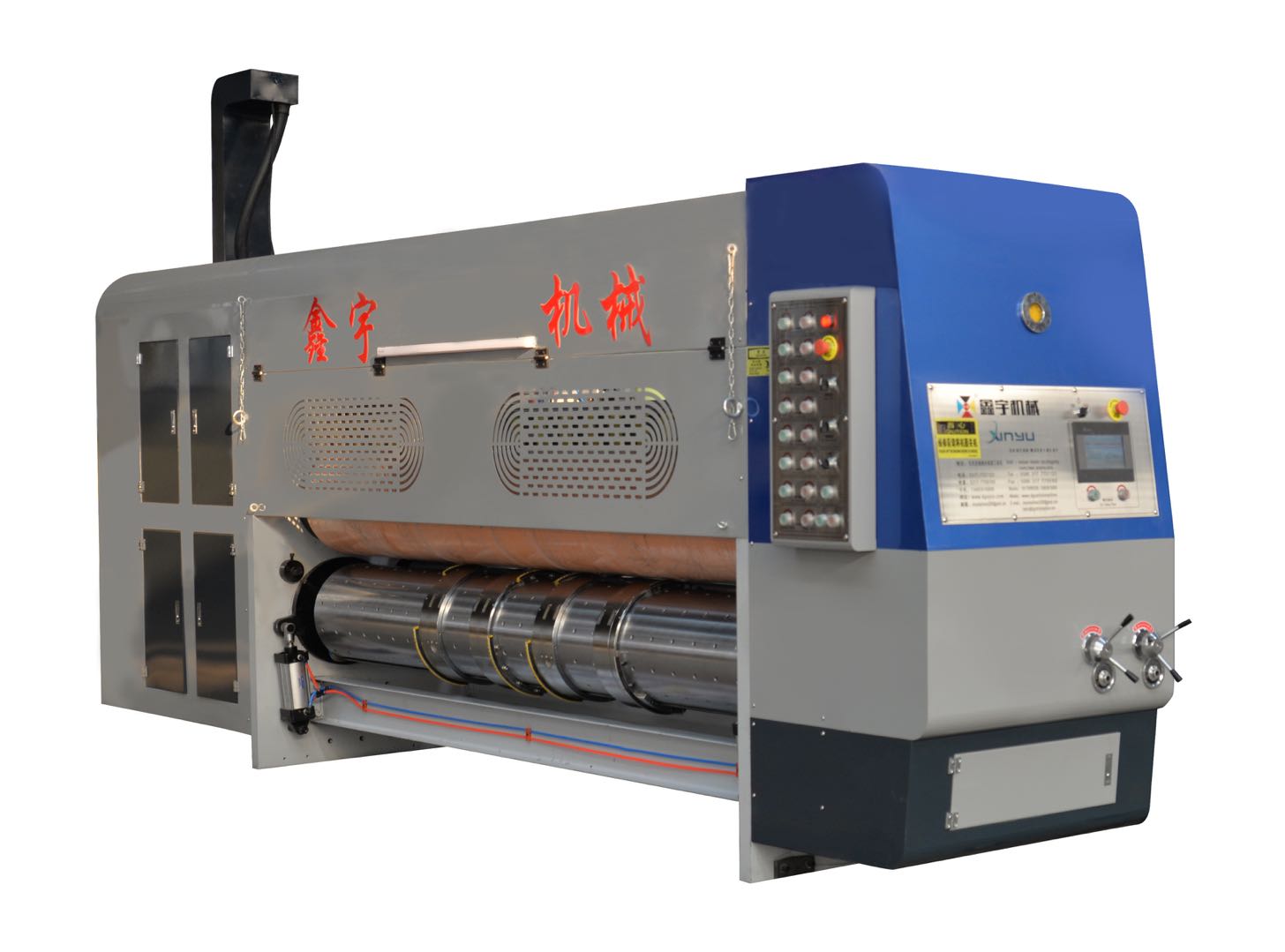

模切部 DIE CUTTER
1:德国科比独立伺服驱动
German Keb independent servo drive.
2:速差自动补偿功能把胶垫滚筒因修复后产生的线速度变化自动补偿
The automatic differential compensation function automatically compensates the anilx roller for the linear velocity change caused by the repair.
3:压线预压自动触摸屏调节
Pre-creasing and creasing is automatically adjust on the touch screen.
4:模切部安全装置采用施耐德联锁装置,开门即可断电,保护了操作人员的安全
Die cutter unit is equipped with Schneider lock system ,when open the door can cut off the power supply ,it can protect the operators safety.

电气部分 Electrical parts
1:本机电气使用法国施耐德,开关电源为台湾明纬,继电器为日本欧姆龙
This machine uses all French electric Schneider, the switching power supply is Taiwan Meanwell , the relay is Japan Omron.
2:触摸屏,变频器,伺服驱动为台湾台达
Touch screen, frequency converter, servo drive for Taiwan Delta.
3:电机为瑞士ABB
The motor is Swiss ABB.
4:电气部分为人性化操作,安全设施保护操作工的安全
The electrical part is humanized, and the safety facilities greatly protect the safety of the operator.
